Yealink Paging List
Configuration
Instead of creating page buttons for each page zone, Yealink offers the ability to program a page list that is accessible by a single DSS key.
The below overrides create a button to open the "Page" list.
linekey.x.label="Page"
linekey.x.line="1"
linekey.x.type="66"
To create the zones that are accessible for sending in the Page list, add the addresses and channels using the below overrides, with 'y' being the index of the paging entry on the list.
multicast.paging_address.y.ip_address="224.0.0.1:10009"
multicast.paging_address.y.channel="0"
multicast.paging_address.y.label="Page Upstairs"
The methods we normally use for multicast paging will still work, however this is a good alternative for locations with a lot of zones and few buttons.
Example

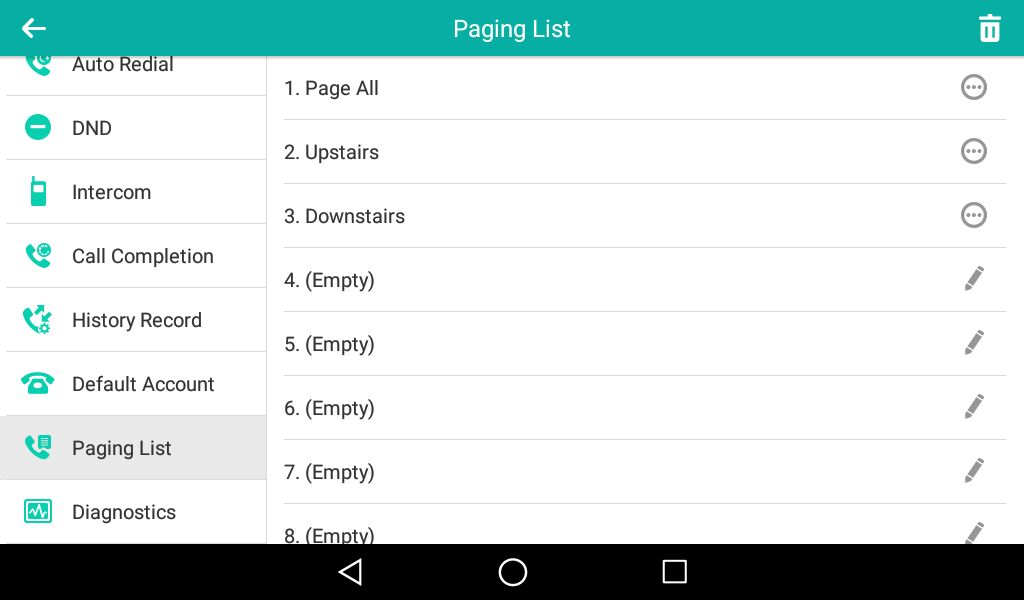

The below configuration places the Page button on DSS Key 15 and programs the phone to transmit on addresses 1, 2, and 3 while it listens on addresses 1 and 2.
linekey.15.label="Page"
linekey.15.line="1"
linekey.15.type="66"
multicast.paging_address.1.ip_address="224.0.0.1:1008"
multicast.paging_address.1.channel="0"
multicast.paging_address.1.label="Page All"
multicast.listen_address.1.ip_address="224.0.0.1:1008"
multicast.paging_address.2.ip_address="224.0.2.1:10009"
multicast.paging_address.2.channel="26"
multicast.paging_address.2.label="Upstairs"
multicast.listen_address.2.ip_address="224.0.2.1:10009"
multicast.listen_address.2.label="Upstairs"
multicast.listen_address.2.channel="26"
multicast.paging_address.3.ip_address="224.0.3.1:1060"
multicast.paging_address.3.channel="27"
multicast.paging_address.3.label="Downstairs"
